Petzl Coeur Bolt Stainless steel (10 mm / 12 mm)

 6.80 8.31

Clear
SKU: Coeur Bolt Stainless (P36BS10/P36BS12) Category: Tags: , , , , , ,

Description

COEUR BOLT STAINLESS

High quality stainless steel anchor for typical exterior uses

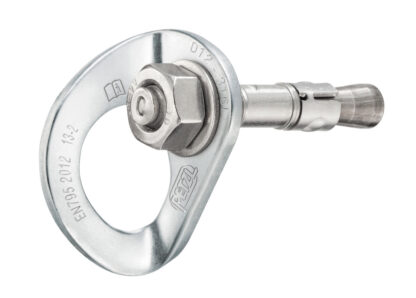

The COEUR BOLT STAINLESS is a high-quality stainless steel anchor composed of a COEUR STAINLESS hanger, a bolt and a nut. It is designed for use in typical outdoor environments. It is available in 10 and 12 mm diameters.

Detailed description

Description

  • 316L stainless steel assembly that offers excellent resistance to corrosion in typical exterior environments, composed of COEUR STAINLESS hanger, a bolt and a nut

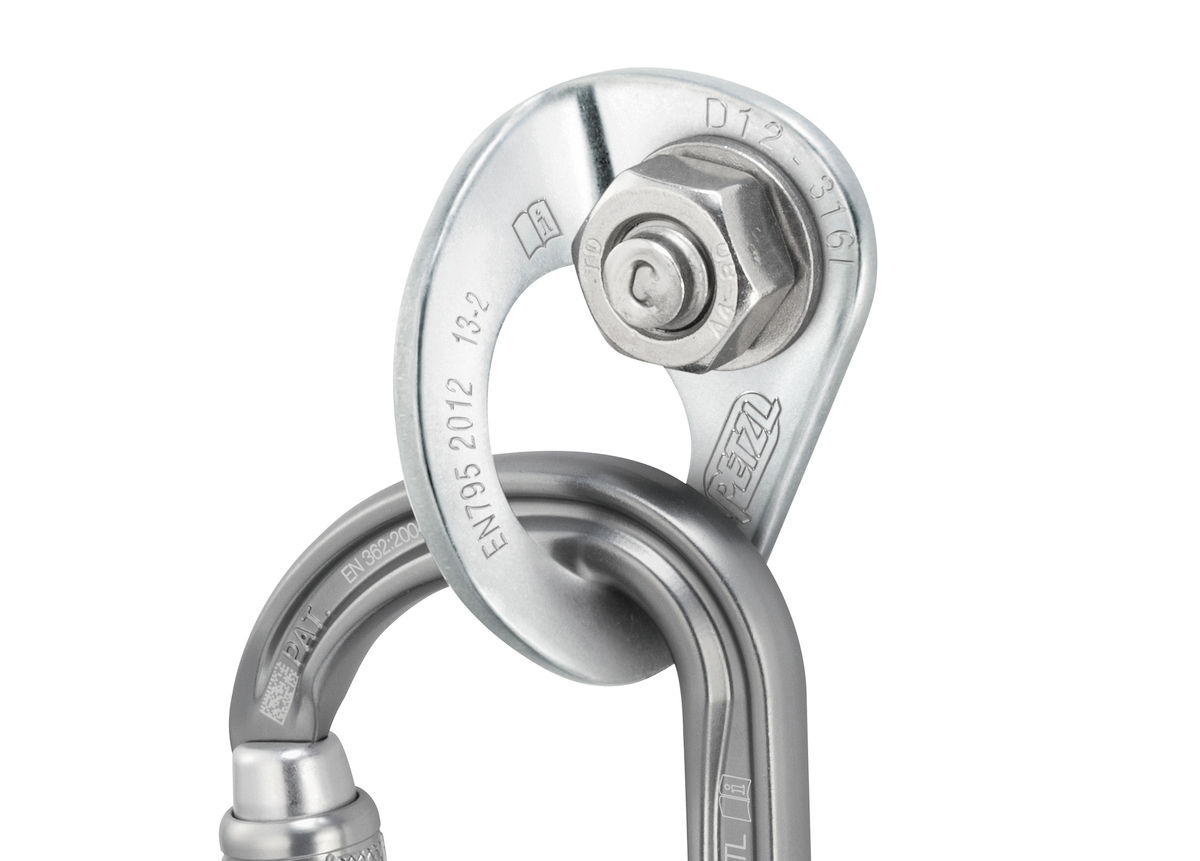

  • Easy clipping:
    – the wide, ergonomic connection hole facilitates carabiner clipping
    – the width of the hole allows installation of two carabiners at the same time
  • Prevents wear of connectors: the thickness of the hanger and the rounded edges of the connection hole limit wear of connectors
  • Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
  • Available in two bolt sizes (10 or 12 mm)

Specifications

  • Material(s): 316L stainless steel
  • Certification(s): EN 959

References

References P36BS 10 P36BS 12
Diameter 10 mm 12 mm
Weight 110 g 135 g
Drilling depth 7 cm 8,5 cm
Drilling diameter 10 mm 12 mm
Resistance to cutting on concrete 50 MPa 25 kN 25 kN
Pull-out strength in concrete 50 MPa 15 kN 18 kN
Guarantee 3 years 3 years

What is the COEUR bolt hanger made of?

COEUR GOUJON anchor components are made of the following:

  • COEUR hanger: 316L stainless steel – X2CrNiMo 17-12 2
  • Bolt: A4 stainless steel – X2CrNiMo 17-12 02 (with 17% chrome)
  • Nut: A4-80 stainless steel

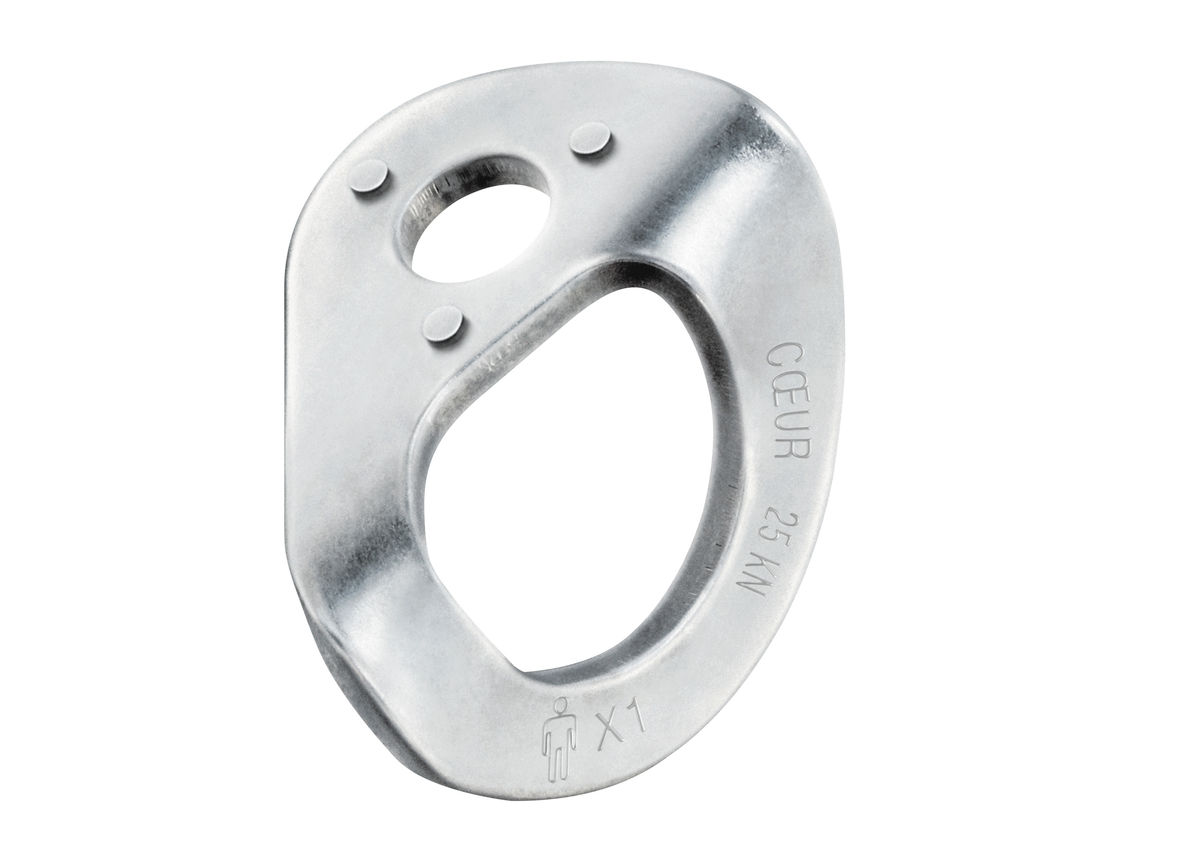

Hanger anti-rotation system

Petzl hangers are textured on the back side that is in contact with the structure (concrete, rock…). This helps prevent the hanger turning when the anchor is being installed, or when it is heavily side-loaded during use.

Additional information

Model

10 mm diameter, 12 mm diameter
