Description

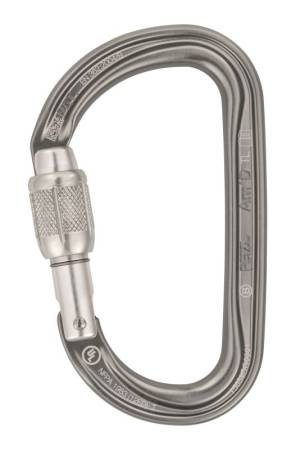

Petzl AM’D – Lightweight asymmetric carabiner
Description
- D shape is particularly suited for connection to equipment such as descenders or positioning lanyards (cowtails)
- Aluminum carabiner whose light weight reduces the weight of equipment the worker at height needs to carry

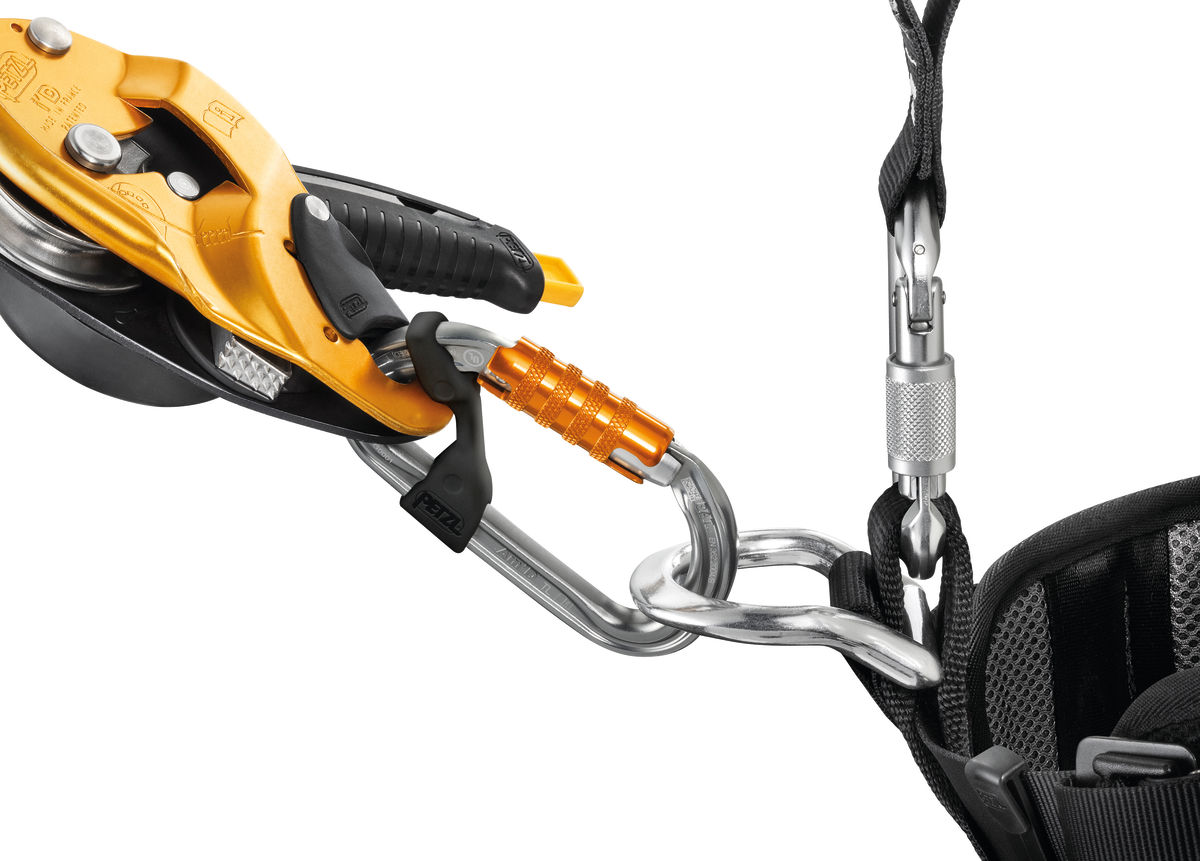

- May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device
- Easier handling:

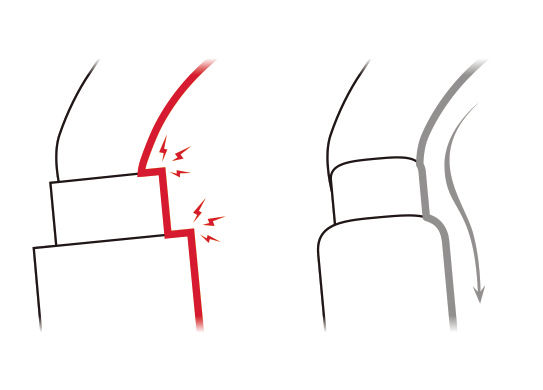

– fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner

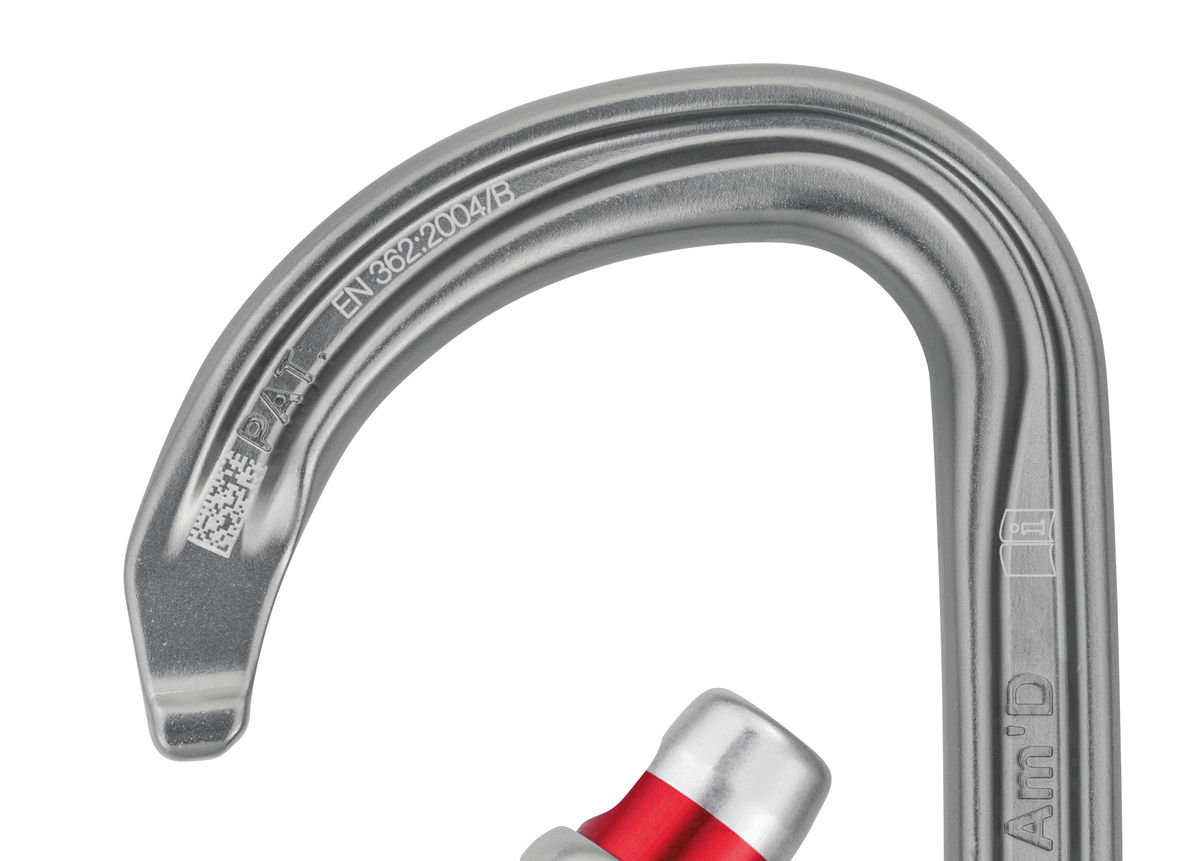

– Keylock system to avoid any involuntary snagging of the carabiner - H cross-section:
– ensures an improved strength-to-weight ratio
– protects markings from abrasion - Available in three different locking systems:

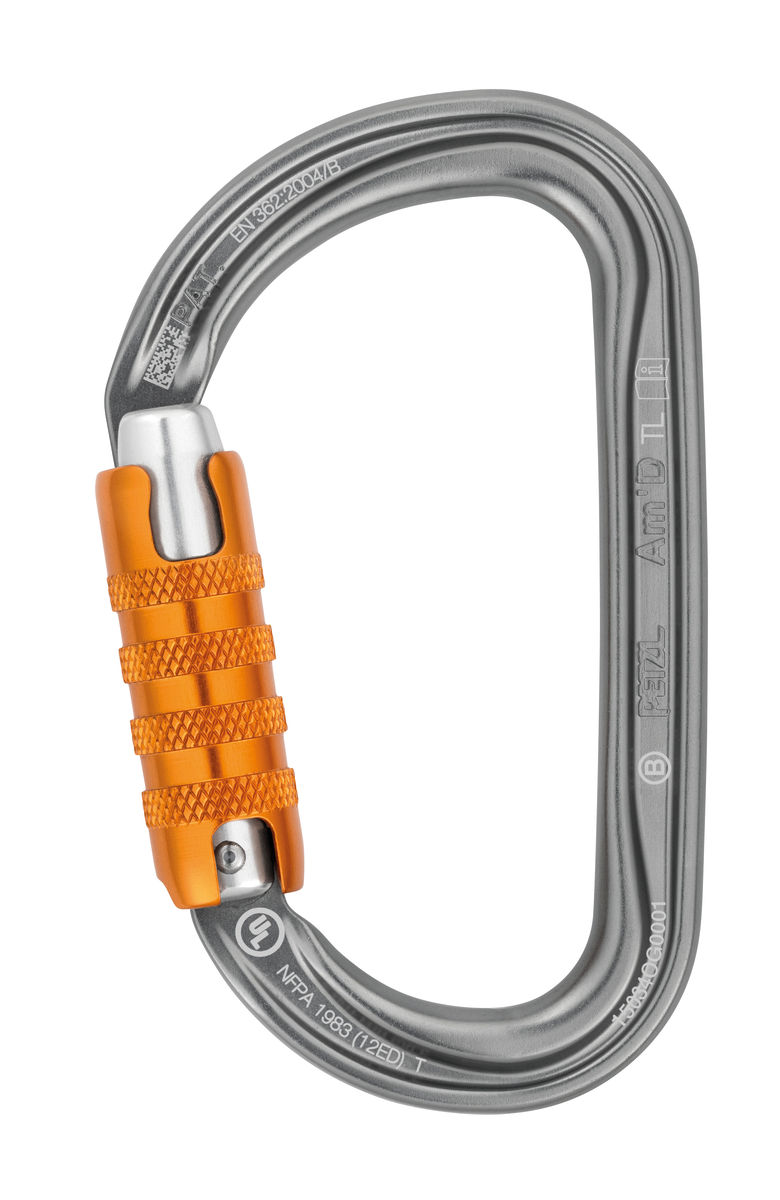

– TRIACT-LOCK: automatic locking with triple-action gate opening

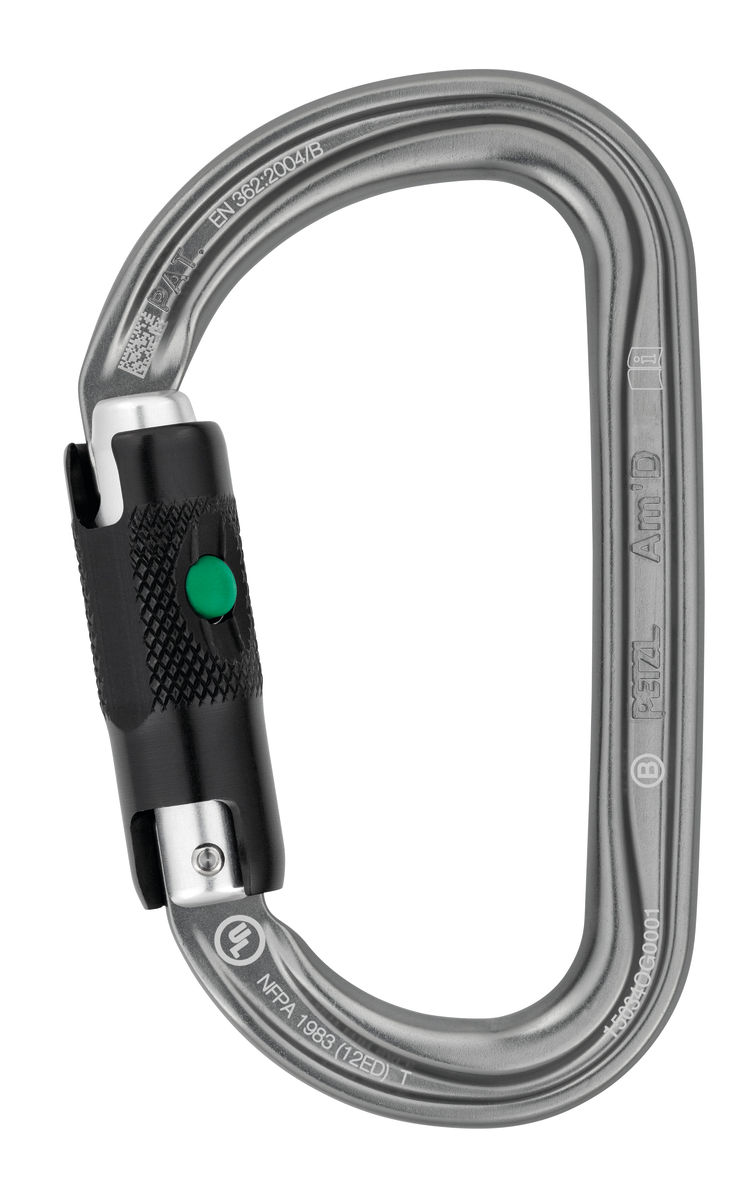

– BALL-LOCK: automatic locking with triple-action gate opening, with lock indicator

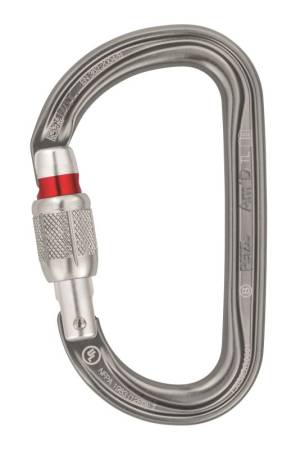

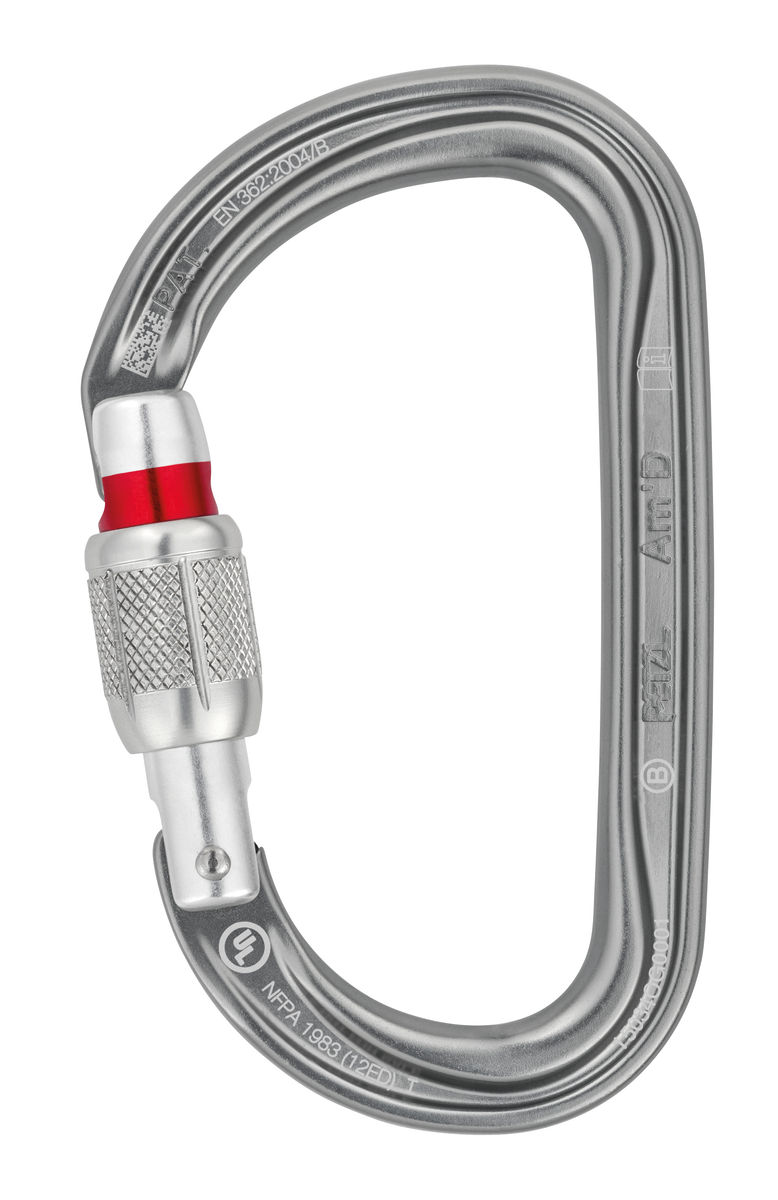

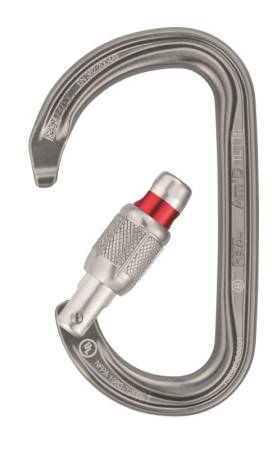

– SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked
Specifications
- Material(s): aluminum
- Certification(s): CE EN 362, EAC, NFPA 1983 Technical Use
References
| References | M34A TL | M34A BL | M34A SL |
|---|---|---|---|
| Weight | 75 g | 75 g | 70 g |
| Locking system | TRIACT-LOCK | BALL-LOCK | SCREW-LOCK |
| Color(s) | gray | gray | gray |
| Major axis strength | 27 kN | 27 kN | 27 kN |
| Minor axis strength | 8 kN | 8 kN | 8 kN |
| Open gate strength | 8 kN | 8 kN | 8 kN |
| Gate opening | 24 mm | 25 mm | 25 mm |
| Guarantee | 3 years | 3 years | 3 years |
| Packing | 1 | 1 | 1 |
