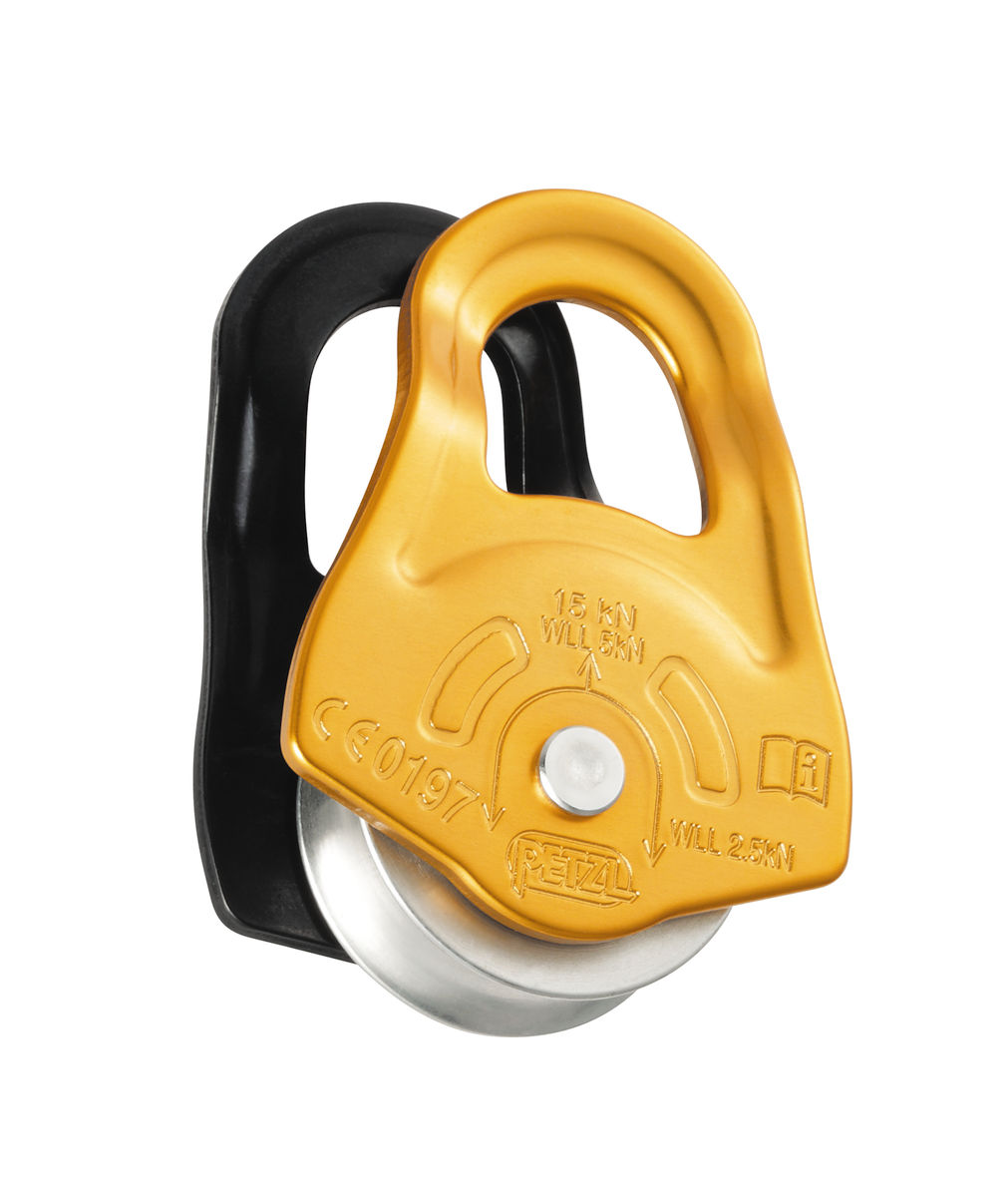

Compact pulley with swinging side plates
The PARTNER pulley is compact and light, yet ensures excellent efficiency thanks to its aluminum sheave mounted on sealed ball bearings.
- Extremely lightweight and ultra-compact pulley
- Quick and easy installation due to the swinging side plates
- Sheave mounted on sealed ball bearings for excellent efficiency
- Material(s): aluminum side plates, aluminum sheave
- Certification(s): CE EN 12278, UIAA
|Min. rope diameter||7 mm|
|Max. rope diameter||11 mm|
|Sheave diameter||25 mm|
|Working load||on one rope strand: 2.5 kN|
|Working load||5 kN|
|Breaking strength||15 kN|
